Summit™ All-In-One Trainer with Ares™ 2.0

Name: Summit™ All-In-One Trainer with Ares™ 2.0
Brand: REP FITNESS EU
SKU: SUMMIT-ARES
Price: 6154.81 EUR
Availability: OutOfStock

Rack Configuration: PR-5000 26" 4-Post with an Ares™ 2.0 Cable Machine Attachment & Smith Machine Rack Attachment

€6.154,81

Free Shipping

Why Buy Direct

Overview
Features
Dimensions
Media Gallery
FAQS

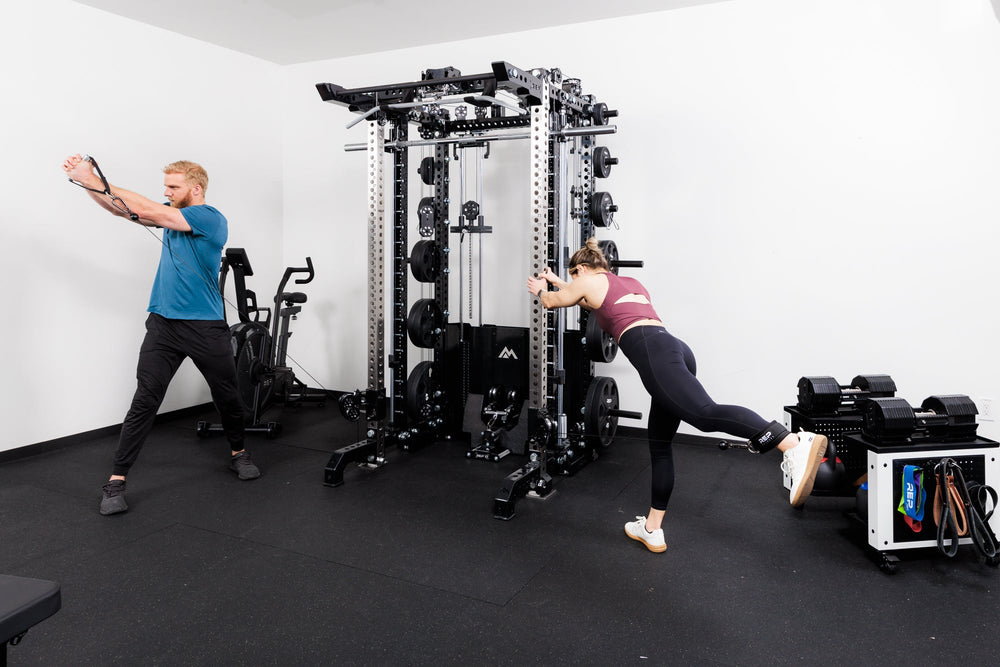

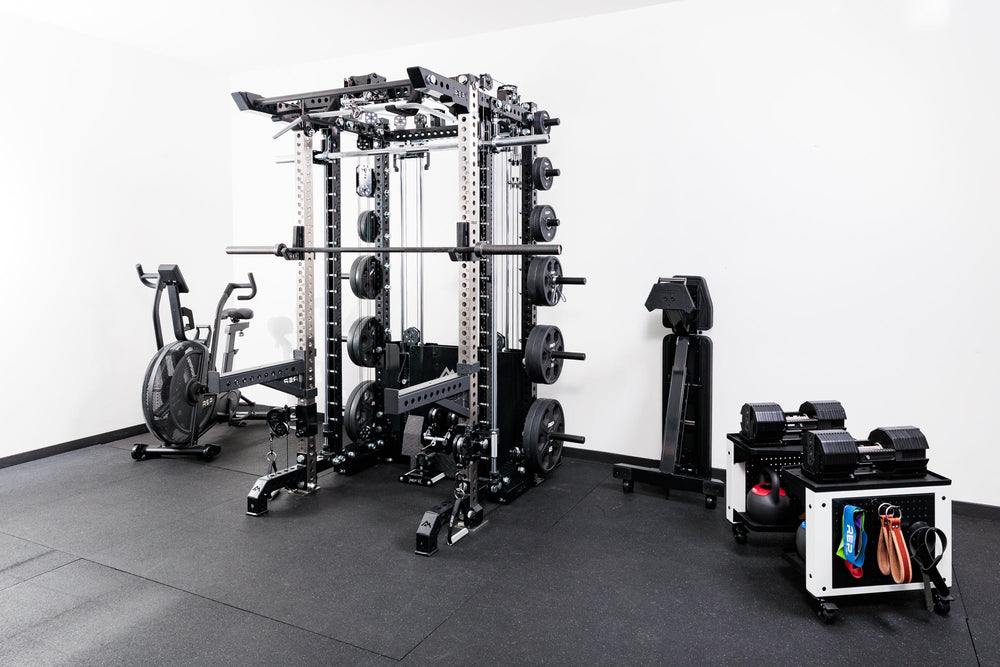

The Summit™ All-In-One Trainer with Ares™ 2.0 is a 4-post home gym system, built for lifters who want the full power of the best cable system and a Smith machine in one streamlined all-in-one home gym machine. Until now, there hasn’t been a true solution that brings these two exercise equipment systems together in a 4-post format, and customers looking for both had no choice but to upgrade to a 6-post rack. By introducing a purpose-built 26" crossmember, we’ve created the smallest possible option that supports the Ares™ 2.0 cable machine attachment and Smith training while keeping your rack layout clean and efficient. It’s engineered for athletes who want maximum workout versatility in the space they already have, with no compromises on capability.

This all-in-one gym rack is designed around intelligent optimization. The new 26" crossmember maintains compatibility with existing Ares™ 2.0. The result is a tight, stable setup — supported by mini front foot extensions — that delivers full cable machine attachment performance and a vertical-orientation Smith machine for full-body strength. While certain incline benches like the Nighthawk™ or BlackWing™ won’t fully clear due to limited backward travel, and the Smith rack is restricted to vertical movement, the fitness system still delivers incredible value. It offers the most compact and cost-effective way to run both Ares™ and Smith training in a 4-post rack, making the versatility of an all-in-one trainer more accessible than ever.

What's Included:

•80” or 93” PR-5000 Rack — Uprights and Crossmembers
•Ares™ 2.0 Cable Machine Attachment
•Smith Machine Rack Attachment
•Colorado™ or Black Diamond™ Smith Machine Barbell
•Logo Plate Crossmember: Compact 2.0
•Weight Storage Horns

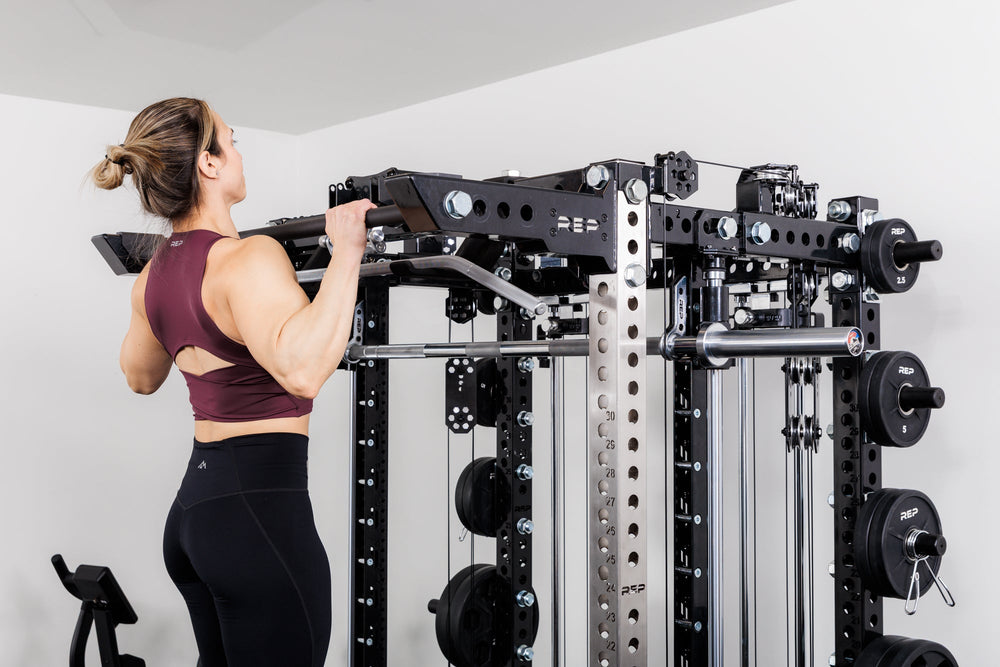

•Ares™ 2.0 4-Post Pull-Up Bar
•Spotter Arms
•Flat Sandwich J-Cups 2.0
•Front Foot Extensions: 2 Mini sets (can remove from cart if bolting your rack down)

Best Home Gym Equipment Add-Ons:

•Leg Roller: The Leg Roller 2.0 is your one-way ticket to exercise versatility.
•Landmine Attachment: Turn your rack and barbell into a landmine station with the REP® x Kleva Built® Adroit Landmine.
•Cable Attachments: Choose a bundle that sets you up for cable machine work: REP® x Kleva Built® Cable Attachment Bundles, Performance Package, or Pro Series Package.

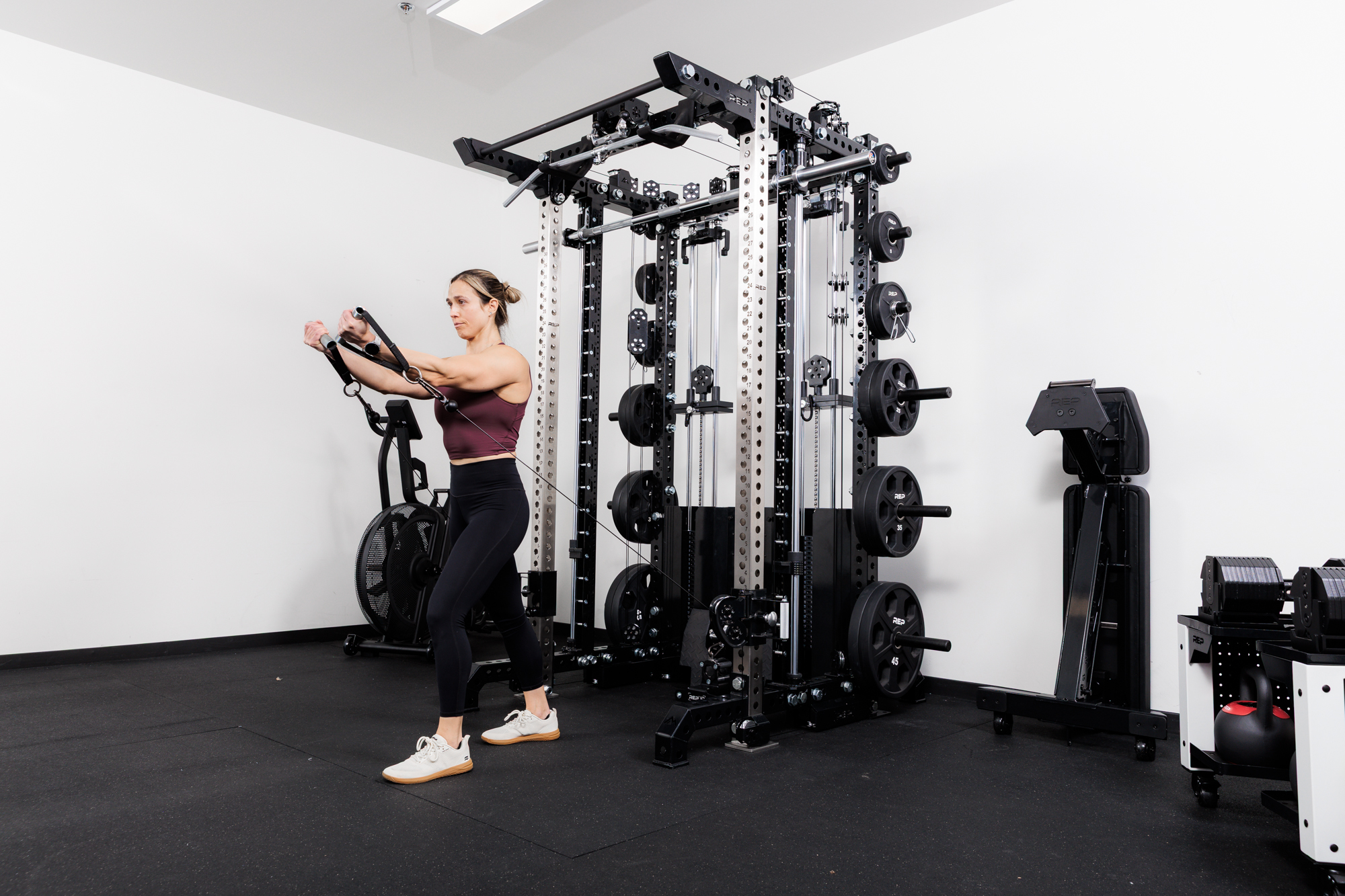

All-In-One Home Gym Machine

The Summit™ All-In-One Trainer with Ares™ 2.0 brings together REP's premium attachments — Ares™ 2.0, Smith machine, and top-of-the-line rack features — into one high-functioning rack.
Unmatched Fitness Functionality

The Ares™ 2.0 provides smooth, precise cable operation while the vertically-oriented Smith machine offers guided lifts. The entire system is engineered to work seamlessly in a tighter footprint while still delivering the premium feel you expect from REP.
Engineered for Strength

Mini front foot extensions ensure the rack stays secure, so you feel strong, grounded, and ready for heavy training. However, these are not needed if you intend on bolting down your setup.

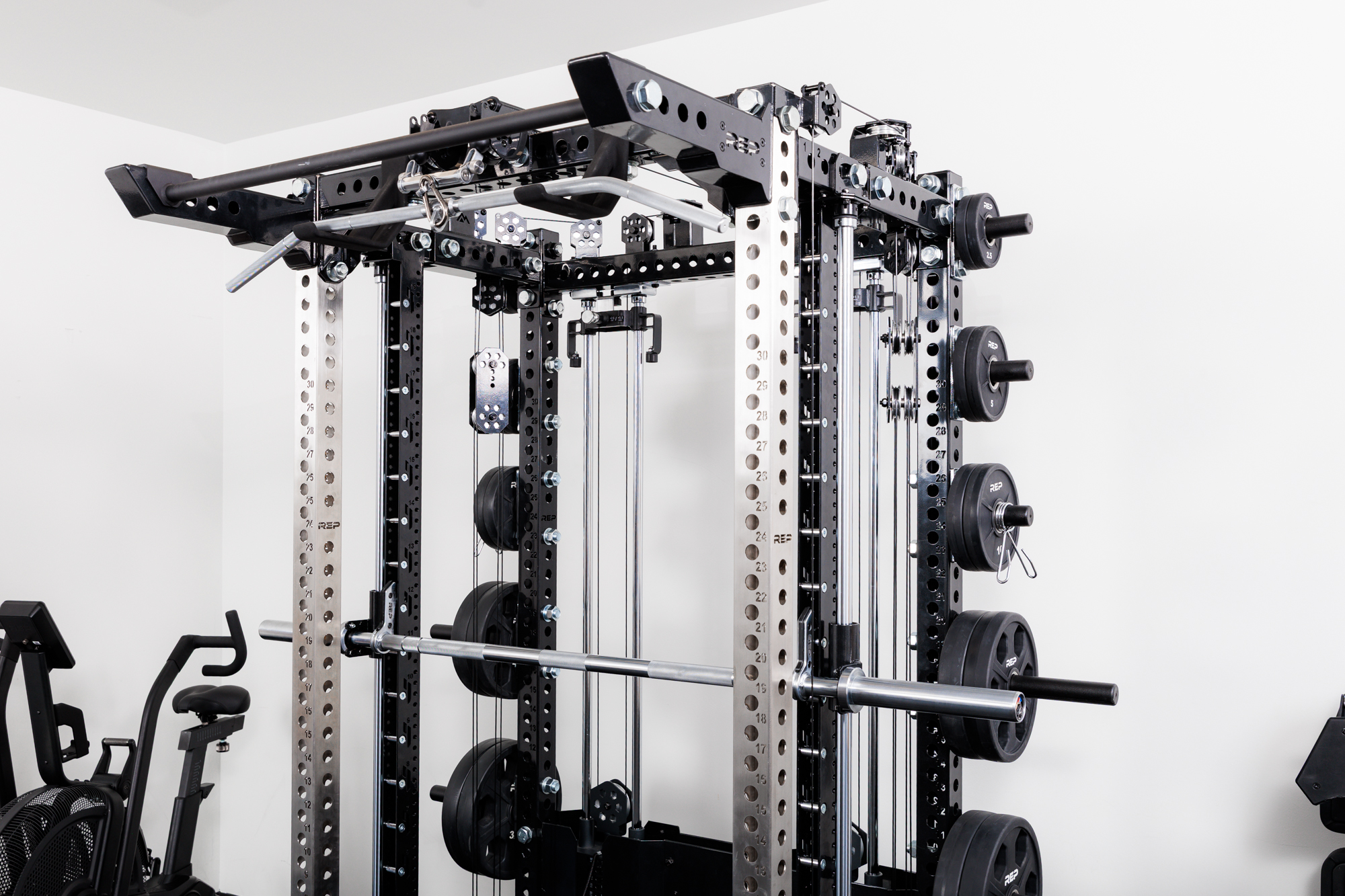

Exercise Equipment Ecosystem

This setup is built to grow with you. Thanks to REP’s cohesive and ever-expanding Summit™ attachment ecosystem, you can easily expand functionality and customize your rack over time — ensuring your training evolves with your goals.

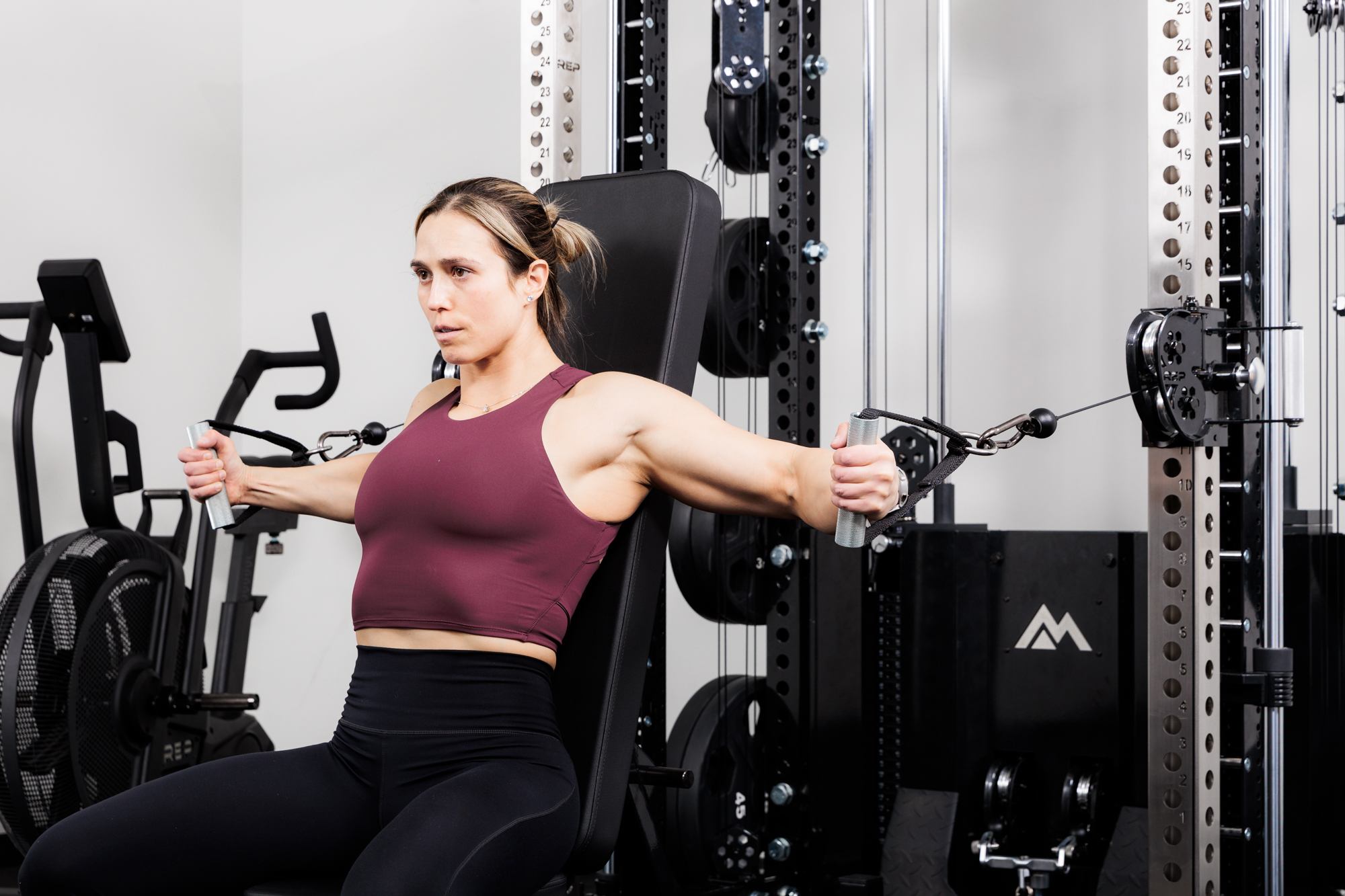

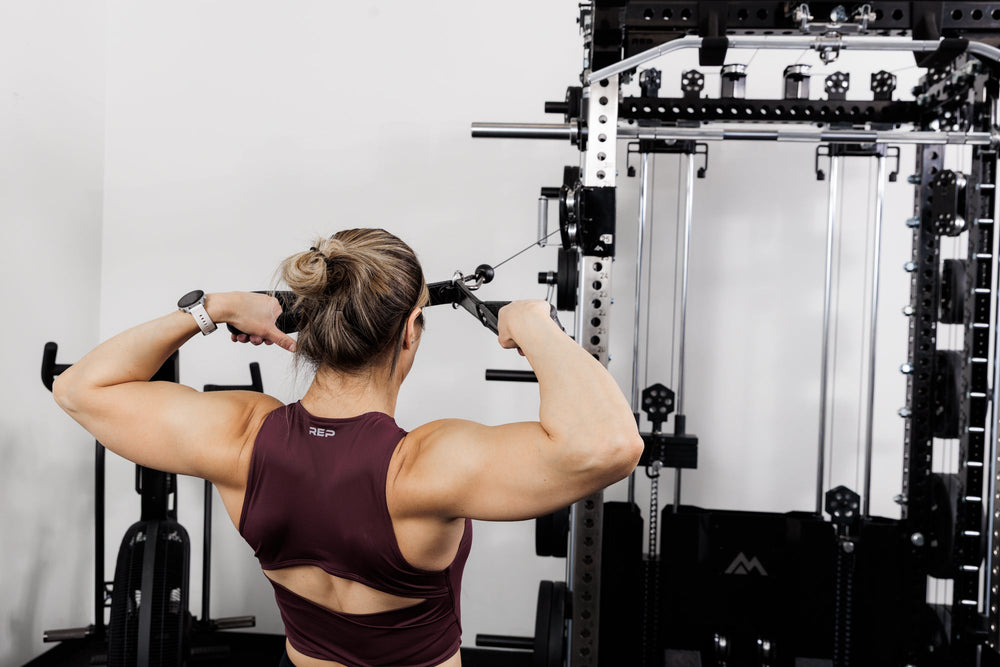

The Best Cable System: Ares™ 2.0

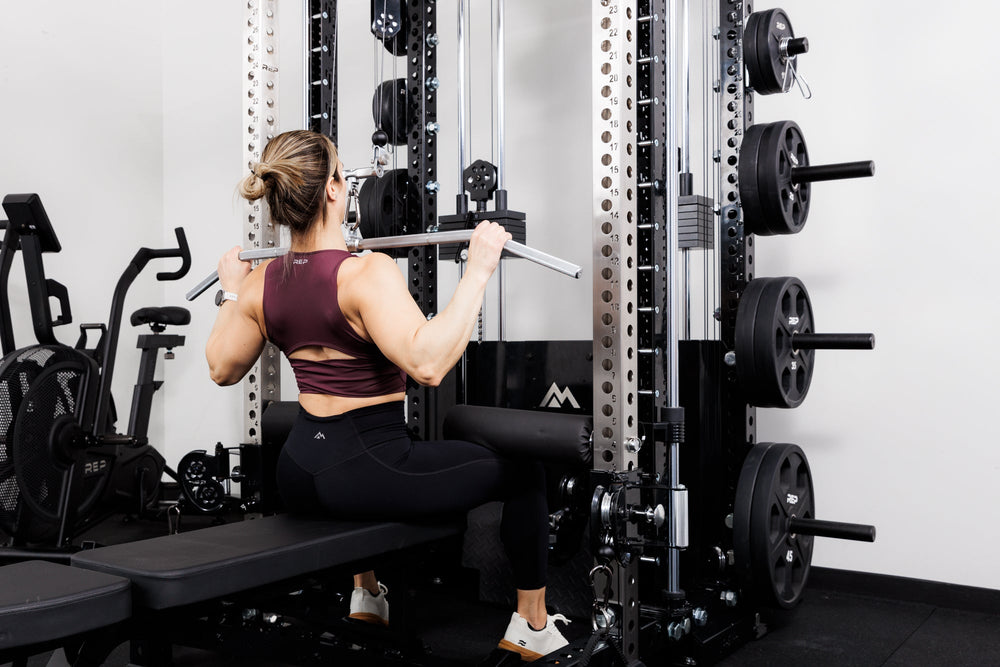

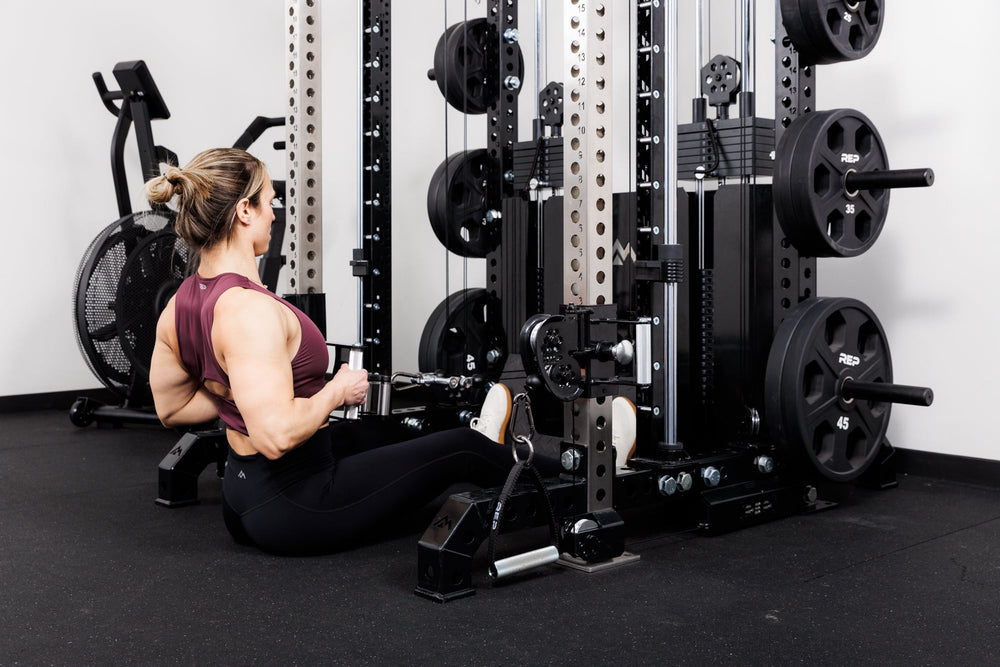

The Ares™ 2.0 cable system is our most elite functional trainer attachment. It supports full-body workouts, including lat pulldowns and low rows, and features a redesigned footplate for more ergonomic lifting and deeper bench placement. Patent-pending cable routing and dual weight stacks deliver smoother, extended travel for both unilateral and bilateral training.

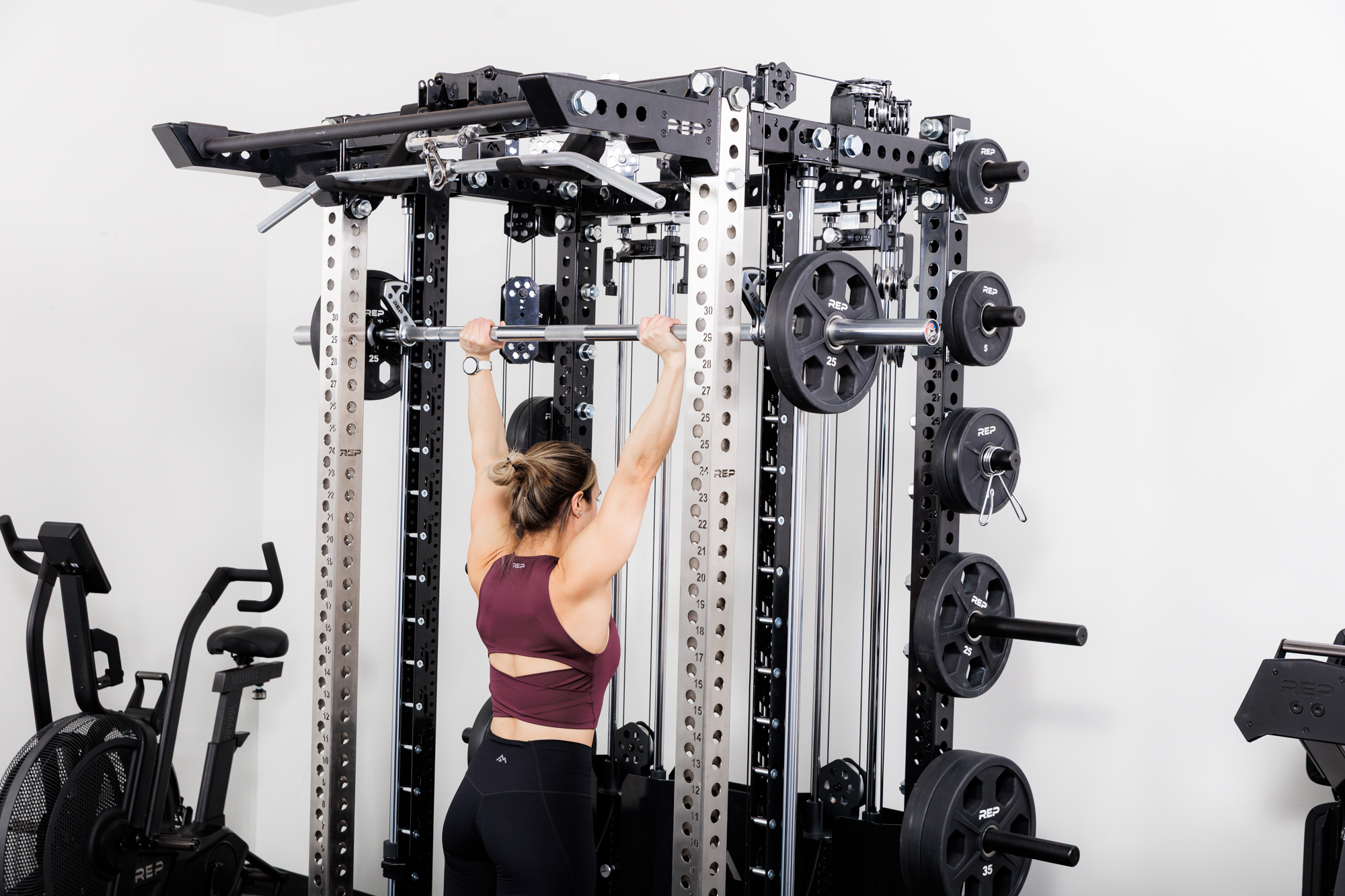

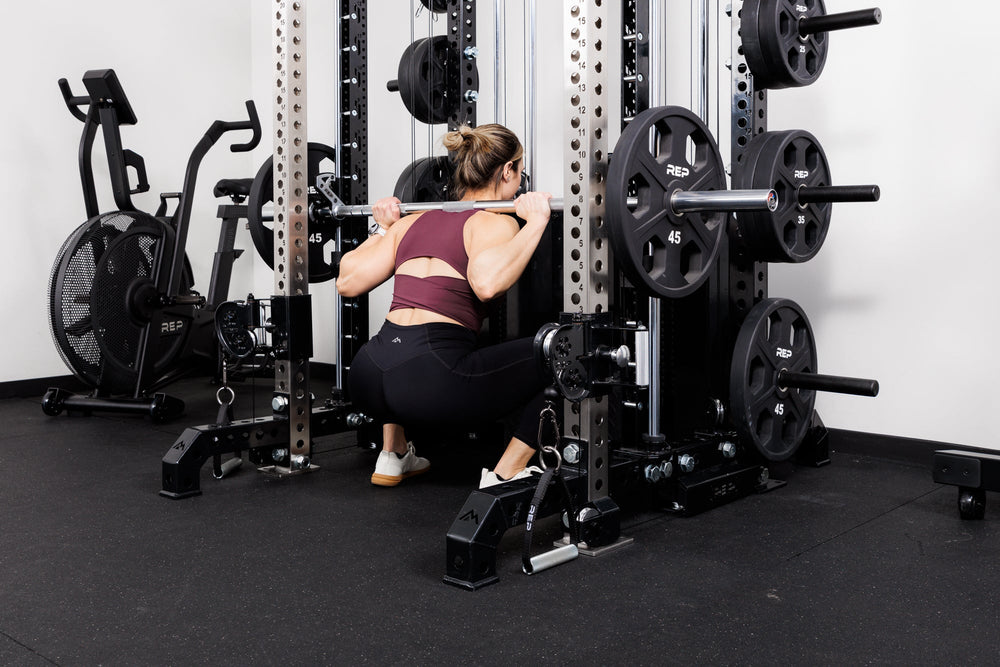

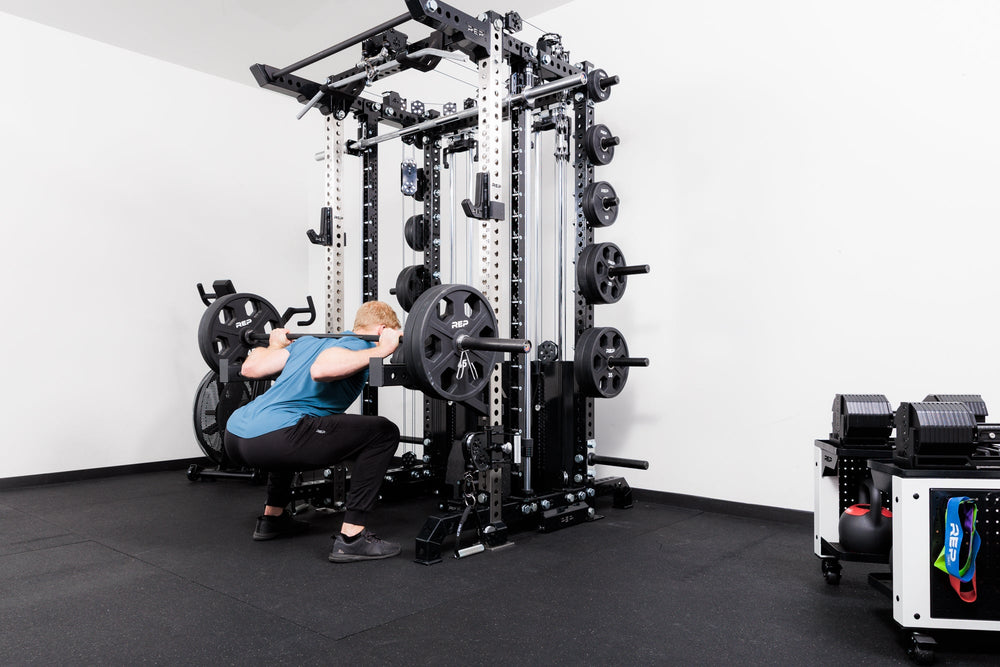

Smith Machine

The Smith machine rack attachment features a 0-degree vertical path, moving straight up and down for consistent, guided stability through a full range of motion — from floor work to overhead presses. Premium bearings and composite-lined bar hooks ensure a smooth performance with minimal friction. The 15kg bar comes with your choice of knurling and can be loaded up to 450 lbs. Compatible with upcoming attachments, so your training can continue to evolve.

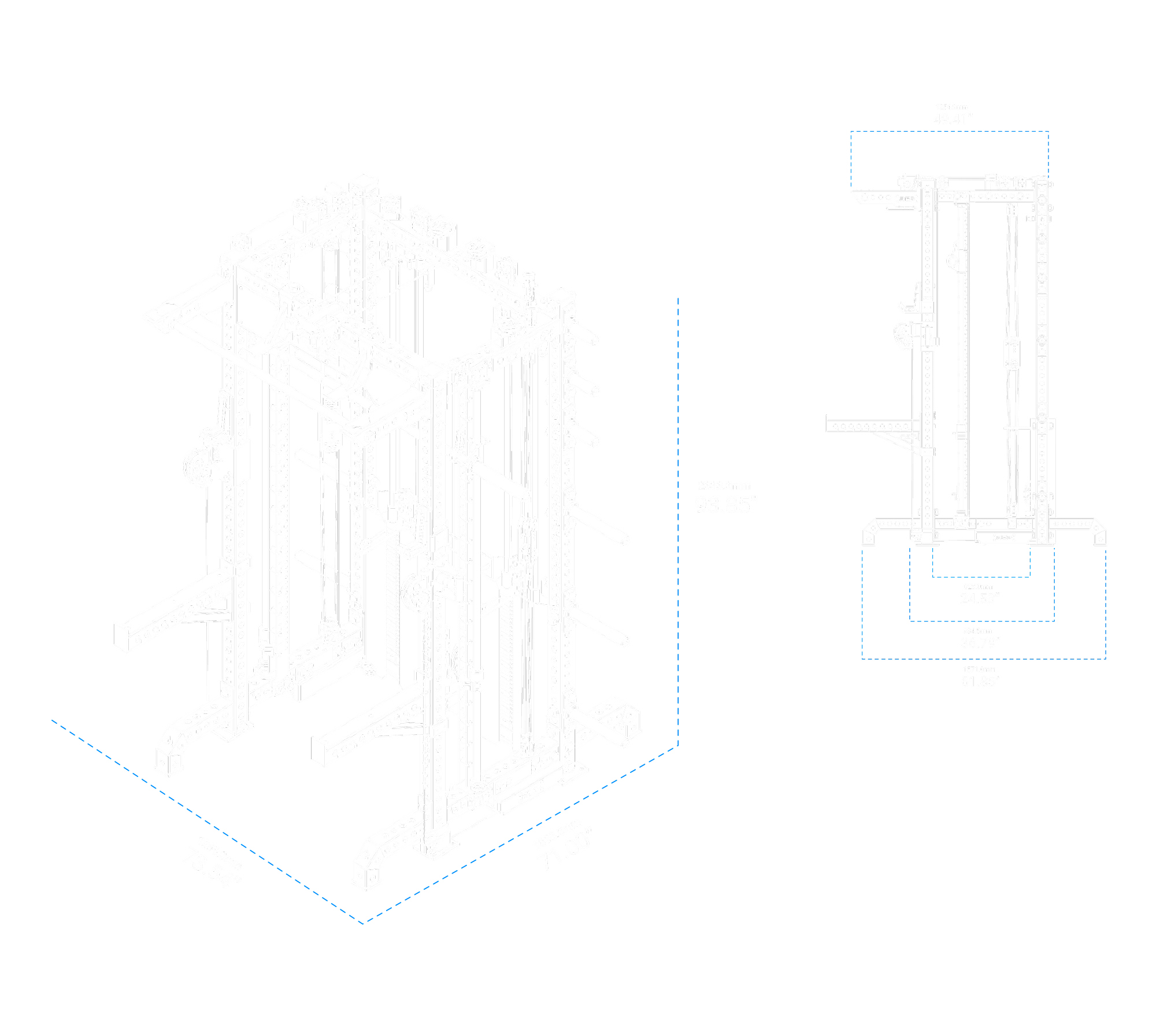

Summit™ All-In-One Trainer with Ares™ 2.0 Informational

Length

71" / 1803.5mm
Width

73.54" / 1868mm
Height

93.85" / 2383.8mm
Rear Upright to Front of Pull-Up Bracket

49.41" / 1254.9mm
Rear Upright to Front Upright

24.53" / 623mm
Back of Ares™ 2.0 to Front Pulleys

36.79" / 934.5mm
Length of Front Foot Extension to Front Foot Extension

61.85" / 1571mm

The Summit™ All-In-One Trainer is a pre-configured 4-post rack that utilizes REP’s 26” crossmember along with PR-5000 attachments such as Ares™ 2.0, Athena™, and the Smith Machine. It integrates a cable system, Smith machine, and half rack into one compact 4-Post footprint.

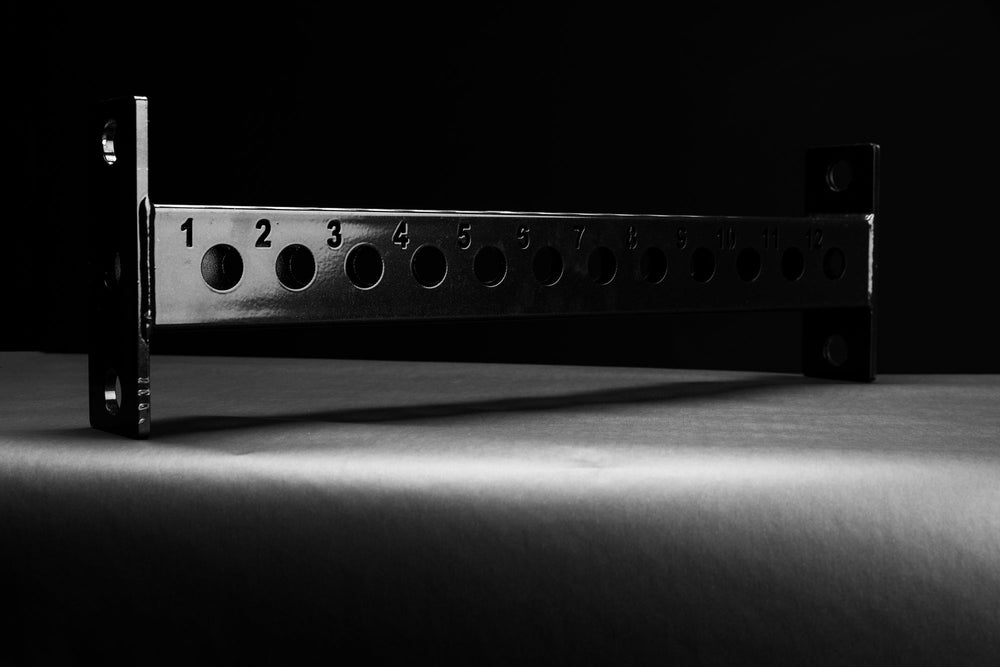

No. The 30” crossmember has different hole spacing, which affects Ares™ 2.0 pulley bracket placement and Athena weight stack alignment. The 26” crossmember was specifically engineered to maintain proper cable geometry while supporting the Smith machine in conjunction to the Ares™ 2.0 or Athena™ cable systems.

26” crossmember was engineered to enable the most compact 4-post rack configuration that integrates Ares™ 2.0 or Athena™ with a Smith machine.

No. They are only available as part of a Summit™ All-In-One Trainer or through an official conversion kit.

No, they are not compatible with Ares™ 1.0.

No. The 26” crossmember is designed specifically for 4-post configurations that integrate a Smith machine and cable system. A 6-post configuration would require a new cable length that is not currently available.

Ares™ 2.0: We recommend both front and rear mini FFEs for optimal stability.

Athena™: Front Mini FFEs are recommended when free-standing.

Wall-Mounted or Bolted down: Not needed.

No. These 26” crossmembers are intended for 4-post half rack setups, so additional strap or flip-down safeties are not planned. For the Summit™ All-In-One Trainer’s, spotter arms are included.

No. A wall-mounted Athena is not currently available with the 26” crossmember.

No. The 26” crossmember is designed for vertical Smith machine use only.

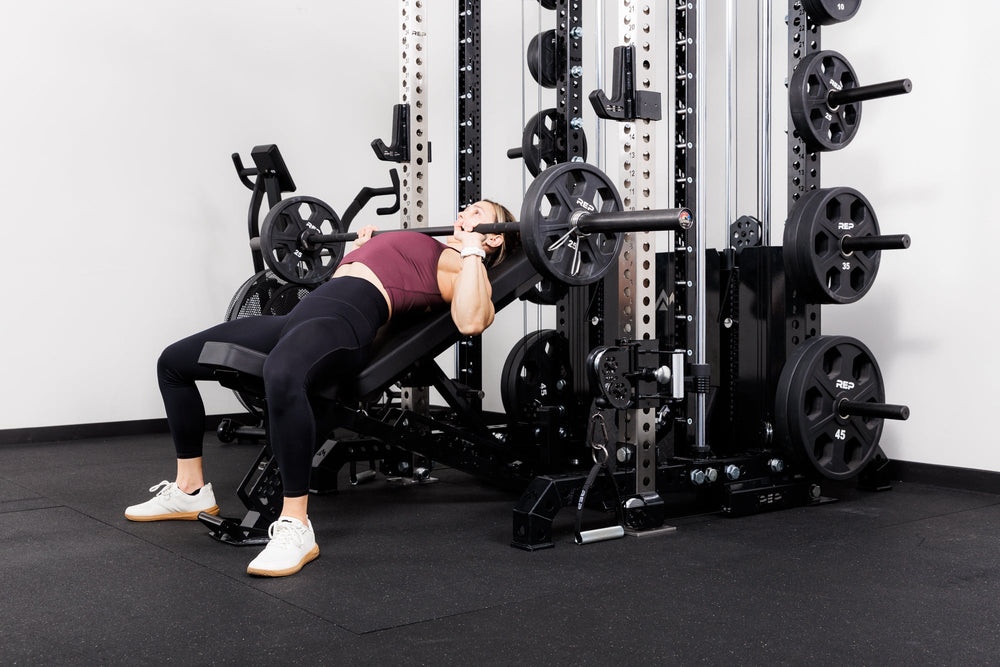

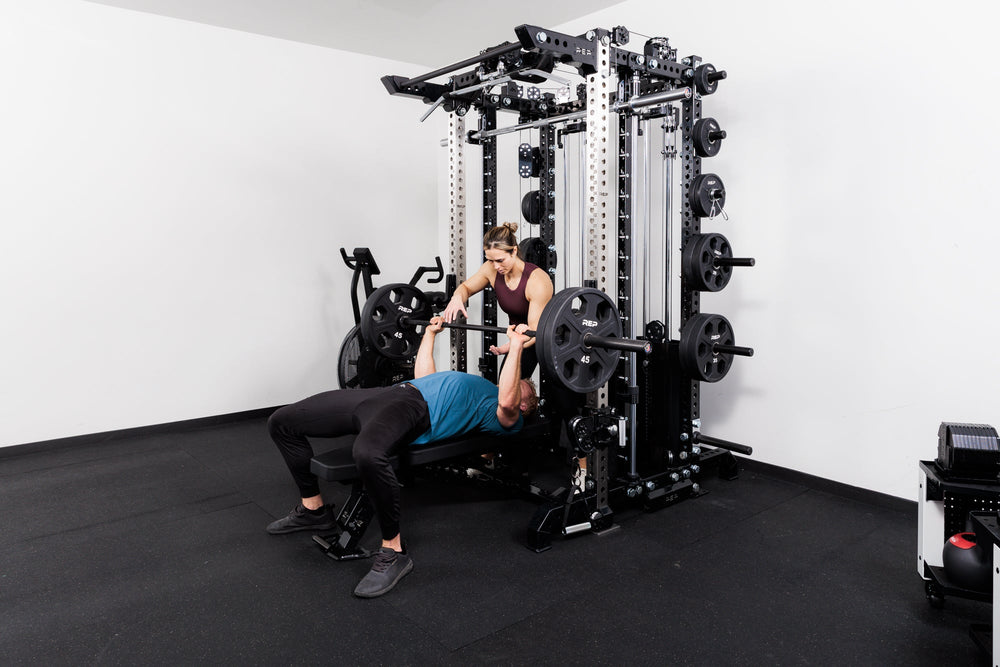

It depends on your exact set-up, your bench and desired angle for incline pressing. For set-ups using the Athena™, the only limiting factor will be the wall, so if you need more room, you can pull your rack away from the wall. For the Ares™ 2.0, the limitation will be the footplate, which prevents the bench from going back further. You can always remove the footplate to get more depth. Based on our testing:

Smaller benches like the Nighthawk™ typically allow incline up to 30 degrees for most users.
Larger benches such as the BlackWing™ may feel tight at most incline angles.
At steeper angles (above 45 degrees), flipping the bench around may improve positioning and enable incline pressing on all benches.

This is one of the tradeoffs of a compact footprint.

Yes. Both selectorized and plate-loaded Lat/Low Row attachments are compatible. The in-rack RBS will be required and sold separately.

Yes. Only the selectorized Athena™ configuration is available for Summit™ All-In-One Trainers.

Refer to the official Smith Machine configuration guide. The Smith bracket should be positioned over holes 3 and 4.

It can be installed either direction, but we recommend positioning the hooks toward the front of the rack to maximize usable space.

Yes. Elbow brackets are required to integrate in-rack storage with Athena™ setups.

When plates are loaded onto the Smith machine, ensure the cable trolley handles are positioned above or below the Smith’s working range to prevent interference.

Yes. This allows the handles to sit on the inside of the rack, reducing interference with Smith plates. This is possible on Athena™ only and not on Ares™ 2.0.

The Colorado Barbell knurl offers a medium aggressive and grippy knurling that works well for all exercises and won't tear up your hands. The Black Diamond knurl is slightly more aggressive and is best suited for individuals that prefer a little more grip. Both options are inspired by REPs premium barbells, but are specifically optimized for use on the Smith machine. They both offer dual knurl markings (IWF / IPF) and a center knurl, making this Smith machine suitable for all exercises.

The Smith machine is rated for 450 lb max loading. The bar weight is approximately 15kg. It has a larger diameter of 35mm versus a standard barbell that has a diameter of 28-29mm. REP engineering chose to use a 35mm bar diameter to allow for the bar to be both strong and lightweight. With a 15KG start weight and 450LB weight capacity, a standard solid barbell would have been way too heavy. With a larger diameter, REP is able to achieve both a lighter start weight and the strength needed for a high-performance Smith machine. There is no counterbalance. REP has worked to lighten the bar enough so that a counterbalance was not needed and would only increase complexity and price of the product.

Compared to a standard barbell, the 35mm shaft diameter may been like it may be hard to grip. For the majority of exercises that involve pressing or the barbell resting our your back, the larger diameter actually feels better, as it helps spread the load out and lessens the pressure. For pulling movements, due to the larger diameter, the barbell will be slightly harder to hold onto than a standard barbell. However, for most Smith machine exercises, we don't think most people will have issues.
